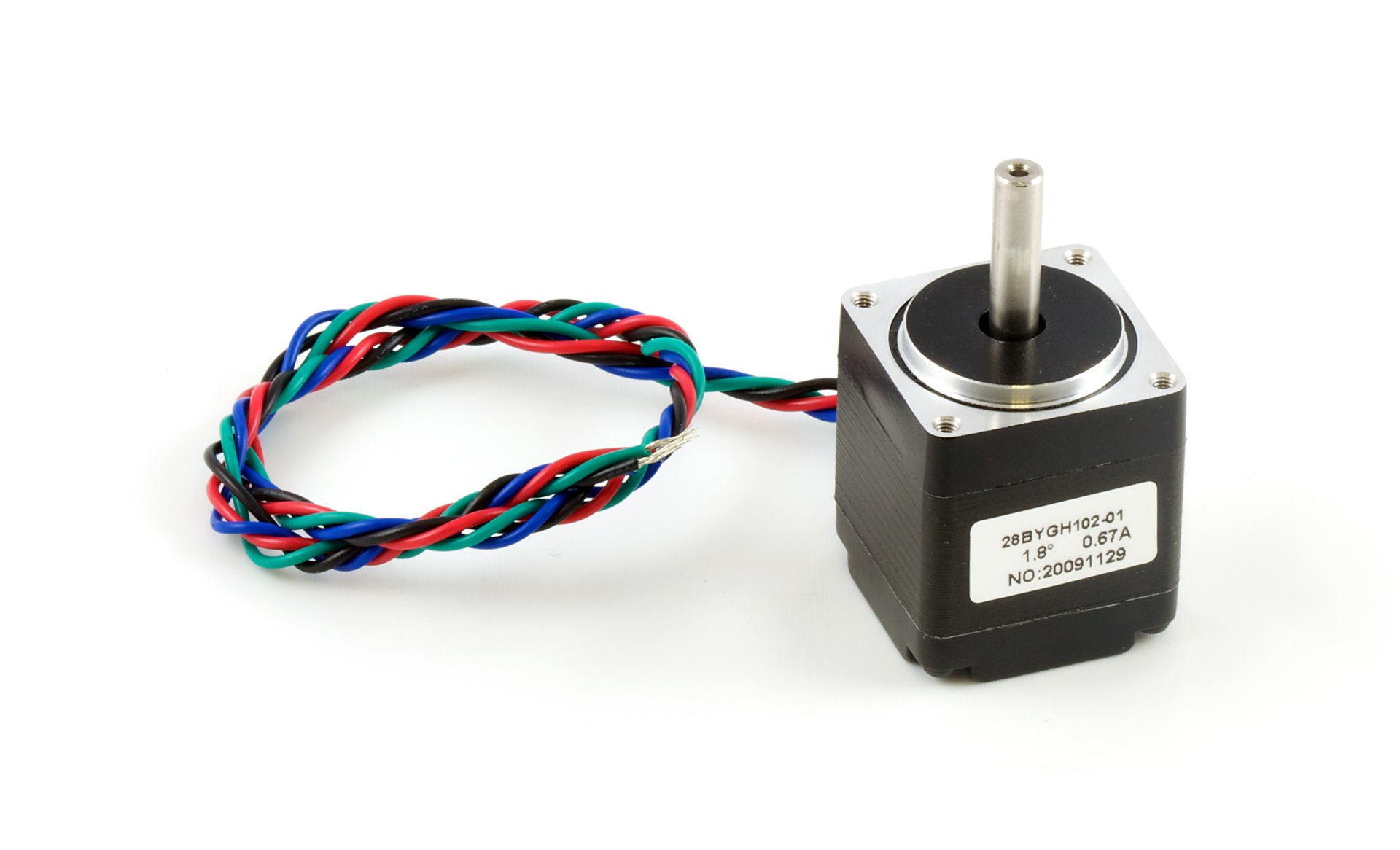

| 3300_0 - NEMA-11 Bipolar 32mm Mini Stepper |
Product Features
- Small, Efficient, Powerful
- 1.8° Step Angle
- 600 g-cm holding torque @ 0.67A
- NEMA-11 Bipolar 4-wire
Product Description
This is a nice, small, efficient stepper motor with good torque characteristics.
Motor Controller and Connection
The 3300 stepper motor connects to a bipolar motor controller:
The following table shows how to connect the motor wires to the board connectors to produce a clockwise rotation in the stepper motor when increasing position. To wire for counter-clockwise rotation when increasing position, reverse the red and blue wires.
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | B | C | D |
Note: Make sure to unplug the power cord from the motor controller before switching wires around.
Warning
|
Connecting the motor directly to a power supply will destroy the motor and void the warranty. If you want to check your motor make sure it is connected to a constant current / chopper drive controller. |
Product Specifications
Motor Properties
| Motor Type | Bipolar Stepper |
| Manufacturer Part Number | 28BYGH102 |
| Step Angle | 1.8° |
| Step Accuracy | 5 % |
| Holding Torque | 600 g·cm |
| Rated Torque | 520 g·cm |
| Maximum Speed (w/1063 Motor Controller) | 600 RPM |
| Maximum Speed (w/1067 Motor Controller) | 4688 RPM |
| Acceleration at Max Speed (w/1067 Motor Controller) | 2E+06 1/16 steps/sec² |
Electrical Properties
| Recommended Voltage | 12 V DC |
| Rated Current | 670 mA |
| Coil Resistance | 5.6 Ω |
Physical Properties
| Shaft Diameter | 5 mm |
| Mounting Plate Size | NEMA - 11 |
| Weight | 107 g |
| Number of Leads | 4 |
| Wire Length | 300 mm |
