| 3263_0 - 12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor |
Product Features
- Good Torque, Good Speed
- Shaft Diameter: 6mm
- 50 801/895 : 1 Gear Reduction
- Rated speed: 78RPM
- Rated Torque: 3.06 Kg-cm
Product Description

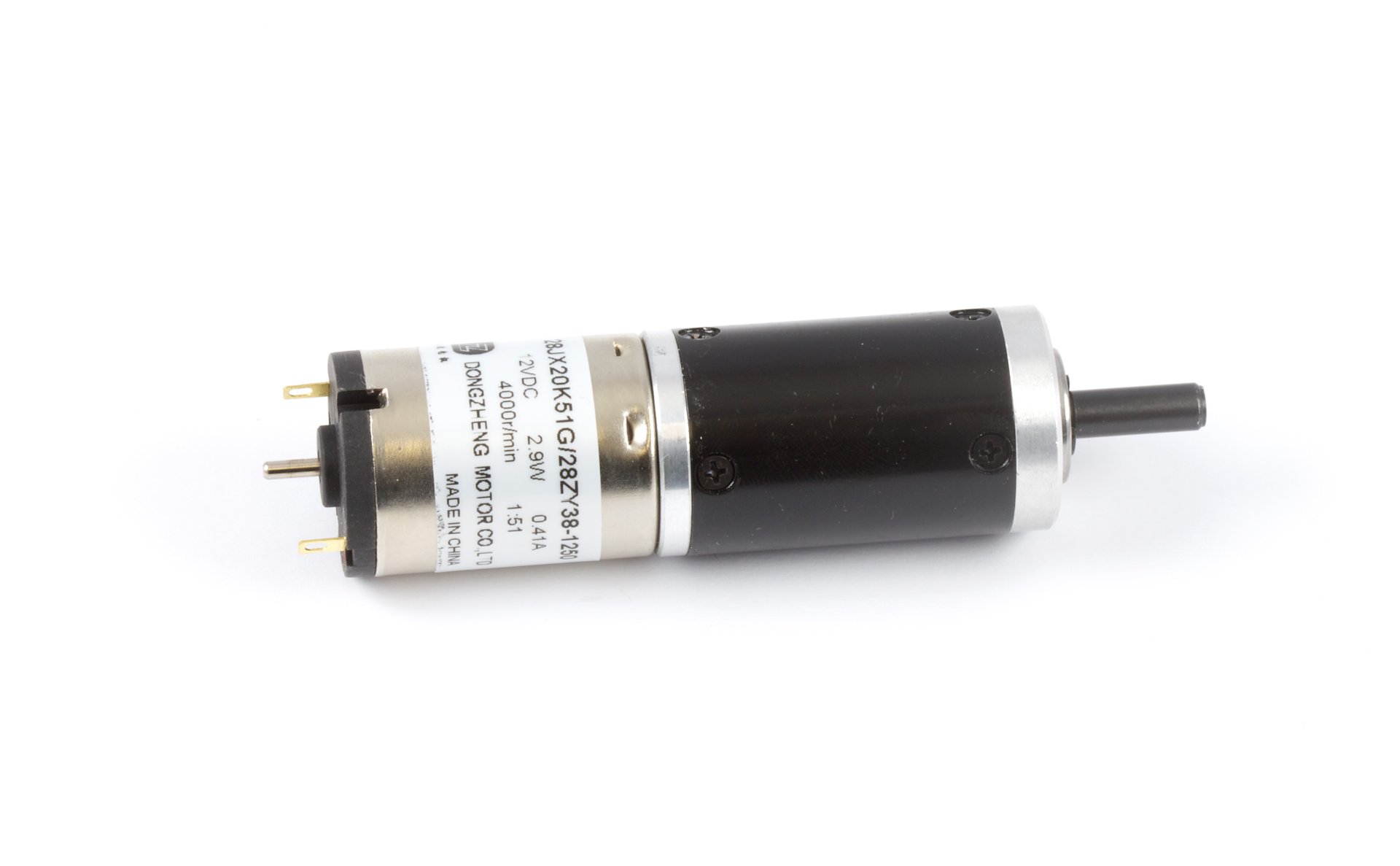

The 3263 is a 12 volt gear motor, generating 3.06 Kg-cm of torque at 78 RPM. This motor is quite compact considering the amout of power it can output.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3263 DC motor connects to either of the following controllers:
You'll need to solder wires to the contacts of the motor in order to connect it to a controller.
Related Products
- 3263E - 12V/3.0Kg-cm/78RPM 51:1 DC Gear Motor w/ Encoder
- 3261 - 12V/0.2Kg-cm/1080RPM 3.7:1 DC Gear Motor
- 3262 - 12V/0.9Kg-cm/285RPM 14:1 DC Gear Motor
- 3264 - 12V/8.4Kg-cm/28RPM 139:1 DC Gear Motor
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 2.9 W |
| Maximum Speed at Rated Voltage | 78 RPM |
| Rated Torque | 3.1 kg·cm |
| Stall Torque | 18.2 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 410 mA |
| Stall Current | 1.5 A |
Physical Properties
| Shaft Diameter | 6 mm |
| Weight | 193 g |
| Recommended Wire Size (Motor) | 20 - 25 AWG |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 50 801⁄895 : 1 |
| Number of Gear Trains | 3 |
| Maximum Strength of Gears | 30 kg·cm |
| Shaft Maximum Axial Load | 35 N |
| Shaft Maximum Radial Load | 25 N |
