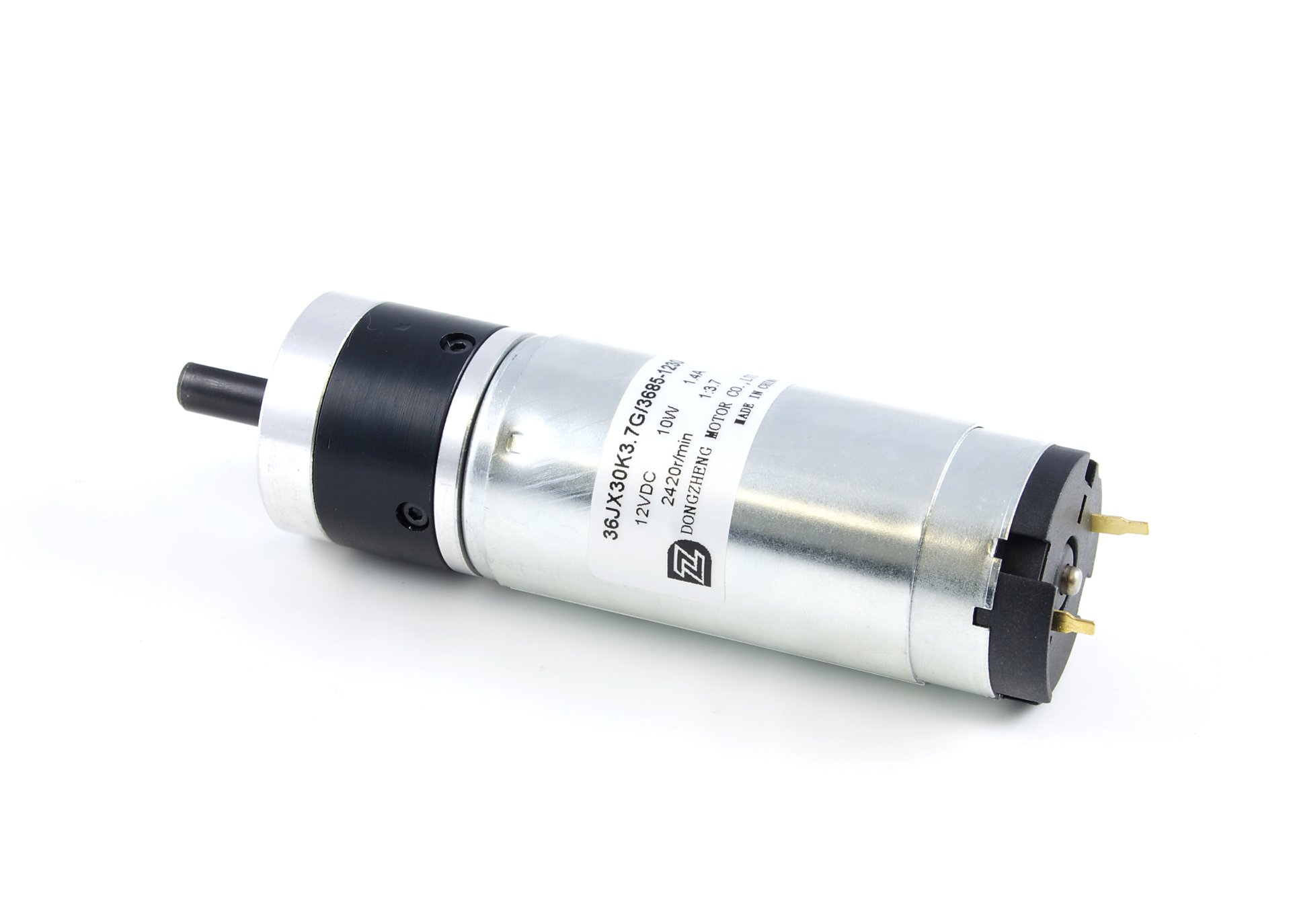

| 3252_0 - 36JX30K3.7G/3685-1230 3.7:1 Planetary Gearbox DC Motor |
Product Features
- Low Torque, High Speed
- Motor Length (including Gearbox): 113mm
- Shaft Diameter: 8mm
- Reduction Ratio: 3 12/17 : 1
- Rated Speed: 654rpm
- Rated Torque: 1.43 Kg-cm
Product Description
The 3252 is a 12 volt gear motor, generating 1.43 Kg-cm of torque at 654 RPM. It's a small, fast motor that can output a small amount of torque.
The planetary gearbox on this motor is more sophisticated than a typical spur gearbox and will provide greater efficiency, higher torque, and quieter motor operation.
Motor Controller and Connection
The 3252 DC motor connects to either of the following controllers:
You'll need to solder wires to the contacts of the motor in order to connect it to a controller.
Resources
Product Specifications
Motor Properties
| Motor Type | DC Motor |
| Output Power (Mechanical) | 10 W |
| Maximum Speed at Rated Voltage | 654 RPM |
| Rated Torque | 1.4 kg·cm |
| Stall Torque | 6.8 kg·cm |
Electrical Properties
| Rated Voltage | 12 V DC |
| Rated Current | 1.4 A |
| Stall Current | 4.4 A |
Physical Properties
| Shaft Diameter | 8 mm |
| Weight | 410 g |
Gearbox Specifications
| Gearbox Type | Planetary |
| Gear Ratio | 3 12⁄17 : 1 |
| Number of Gear Trains | 1 |
| Maximum Strength of Gears | 9.2 kg·cm |
| Shaft Maximum Axial Load | 35 N |
| Shaft Maximum Radial Load | 50 N |
