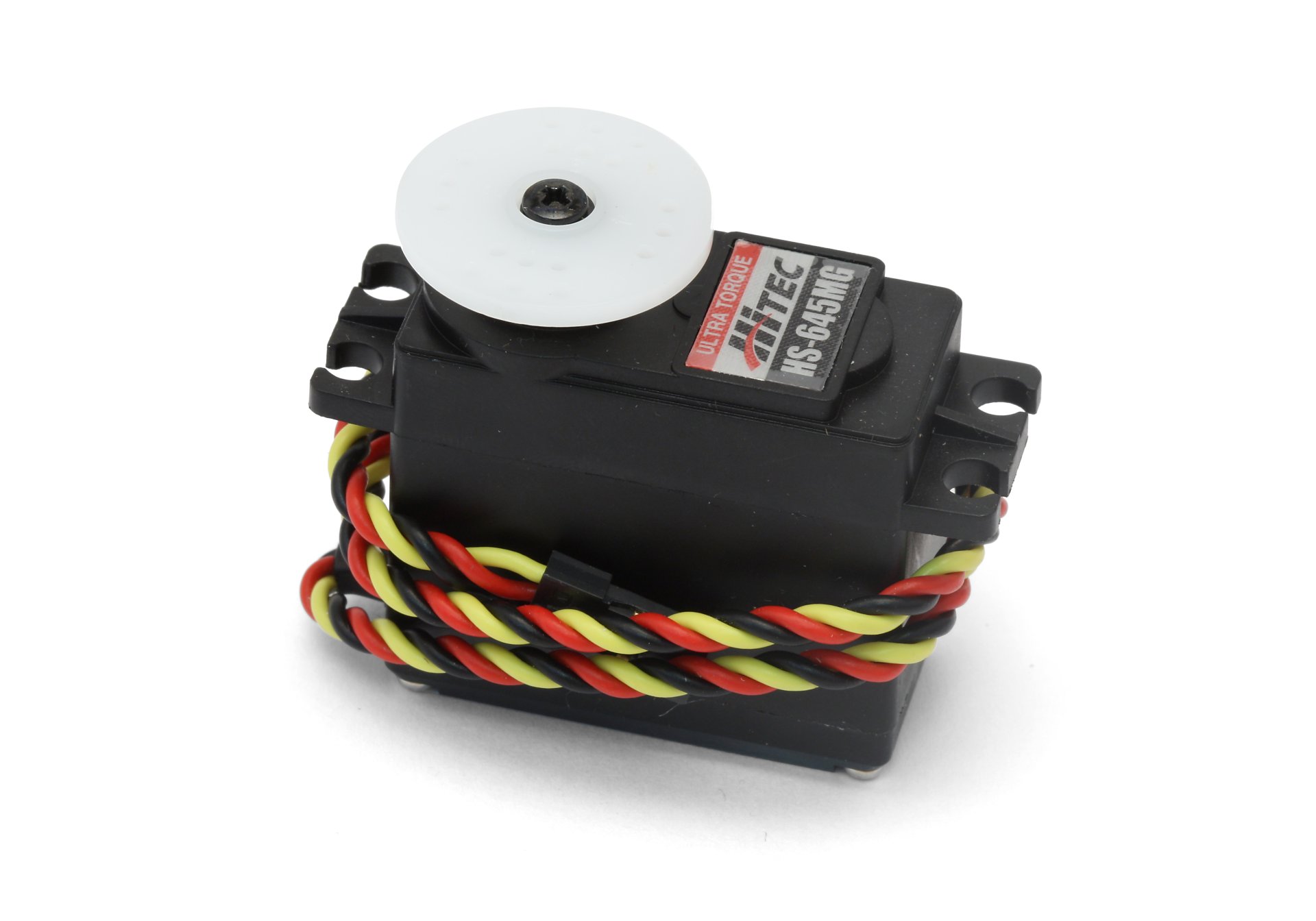

|3204_0 - Hitec HS-645MG Super Torque Servo|
- 180° of travel
- Durable High Torque
- Metal Gear Train
- Dual Ball Bearing
The powerful HS-645MG is one of Hitec’s most popular servos. It’s the perfect choice for those projects requiring a durable high torque servo. Featuring Hitec's unique M/P and metal gear train technology, the HS-645MG offers one of the strongest gear trains available in any RC servo.
RC servos are hobbyist remote control servos typically used in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.
|Motor Type||Limited Rotation Servo|
|Range of Rotation||180°|
|Maximum Speed at Rated Voltage||300°/s|
|Rated Torque||7.7 kg·cm|
|Gear Train Material||Metal|
|Bearing Type||Dual Ball Bearing|
|Motor Length||37.7 mm|
|Motor Width||40.6 mm|
|Motor Depth||19.8 mm|
|Wire Length||300 mm|
|Rated Voltage||5 V DC|
|Rated Current (on 1061 controller)||230 mA|
|Rated Current (on 1066 controller)||120 mA|
|Stall Current (on 1061 controller)||1.8 A|
|Stall Current (on 1066 controller)||480 mA|
These product specifications are based on our own tests using the HS-645motor with the Phidgets 1061 and 1066 motor controllers.
The 3204 - Super Torque Servo can be used with the following Phidget motor controllers:
You must use the 1061 if you want to get the maximum torque out of your motor.
