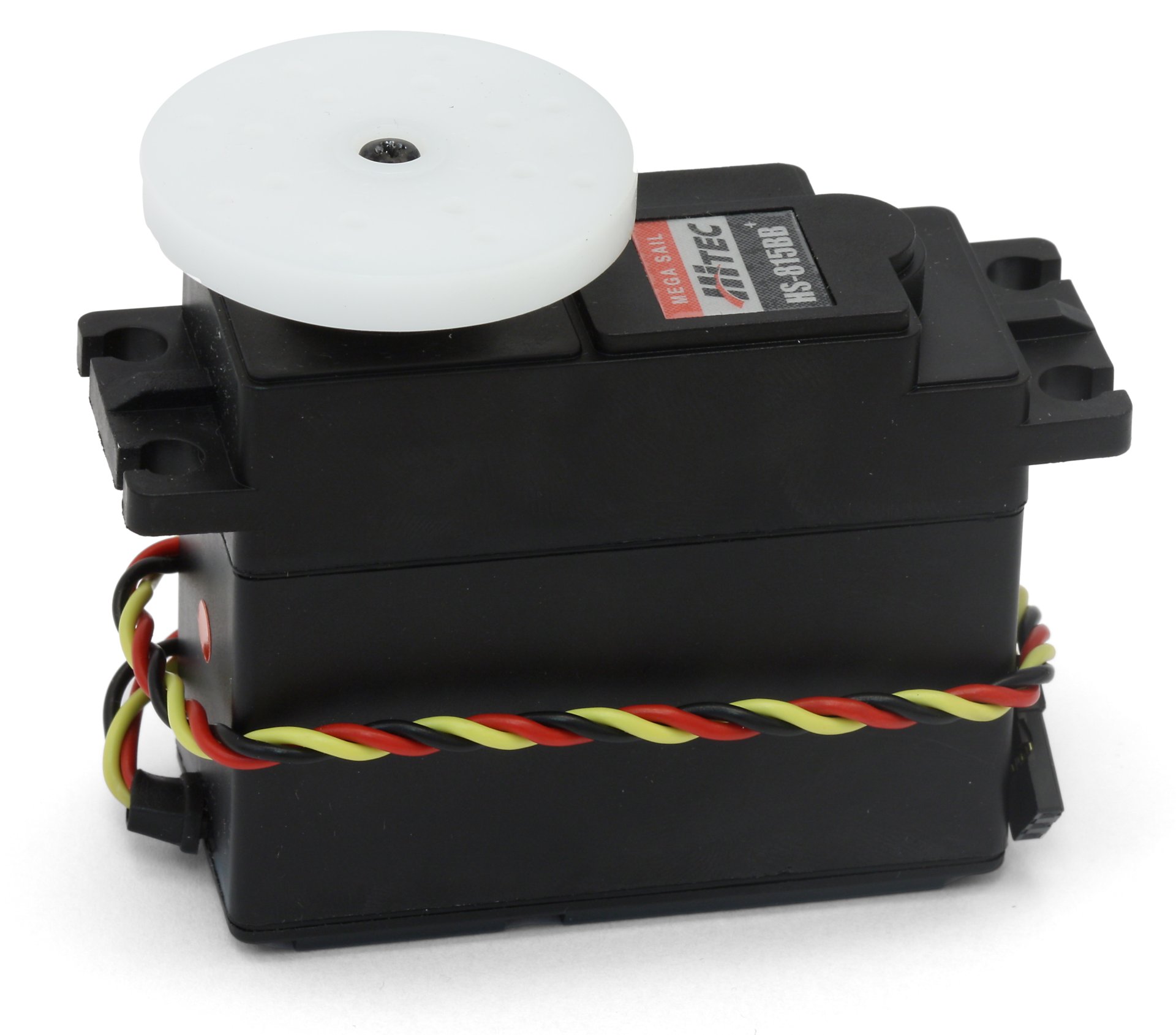

|3200_0 - Hitec HS-815BB Mega Sail Servo|
- 180° of travel
- Heavy Duty 4.5 inch arm
- Lots of Torque
- Dual Ball Bearing
The HS-815BB Mega sail arm servo has up to 180 degrees of travel and comes with a Heavy Duty 4.5 inch arm, with a dual ball bearing supported output shaft.
RC servos are hobbyist remote control servos typically used mostly in radio-controlled models, where they provide actuation for various mechanical systems such as the steering of a car, the flaps on a plane, or the rudder of a boat. These servos are not industrial grade and are not recommended for continuous heavy use.
Due to its large amount of torque, the Mega Sail Servo will only work with the 1061 - PhidgetAdvancedServo 8-Motor. This servo motor will not operate properly with the Phidgets 1066.
|Motor Type||Limited Rotation Servo|
|Range of Rotation||180°|
|Maximum Speed at Rated Voltage||125°/s|
|Rated Torque||19.8 kg·cm|
|Gear Train Material||Plastic|
|Bearing Type||Dual Ball Bearing|
|Motor Length||57 mm|
|Motor Width||66 mm|
|Motor Depth||30 mm|
|Wire Length||300 mm|
|Rated Voltage||5 V DC|
|Rated Current (on 1061 controller)||350 mA|
|Rated Current (on 1066 controller)||350 mA|
|Stall Current (on 1061 controller)||3.3 A|
|Stall Current (on 1066 controller)||450 mA|
These product specifications are based on our own tests using the HS815 motor with the Phidgets 1061 motor controller.
