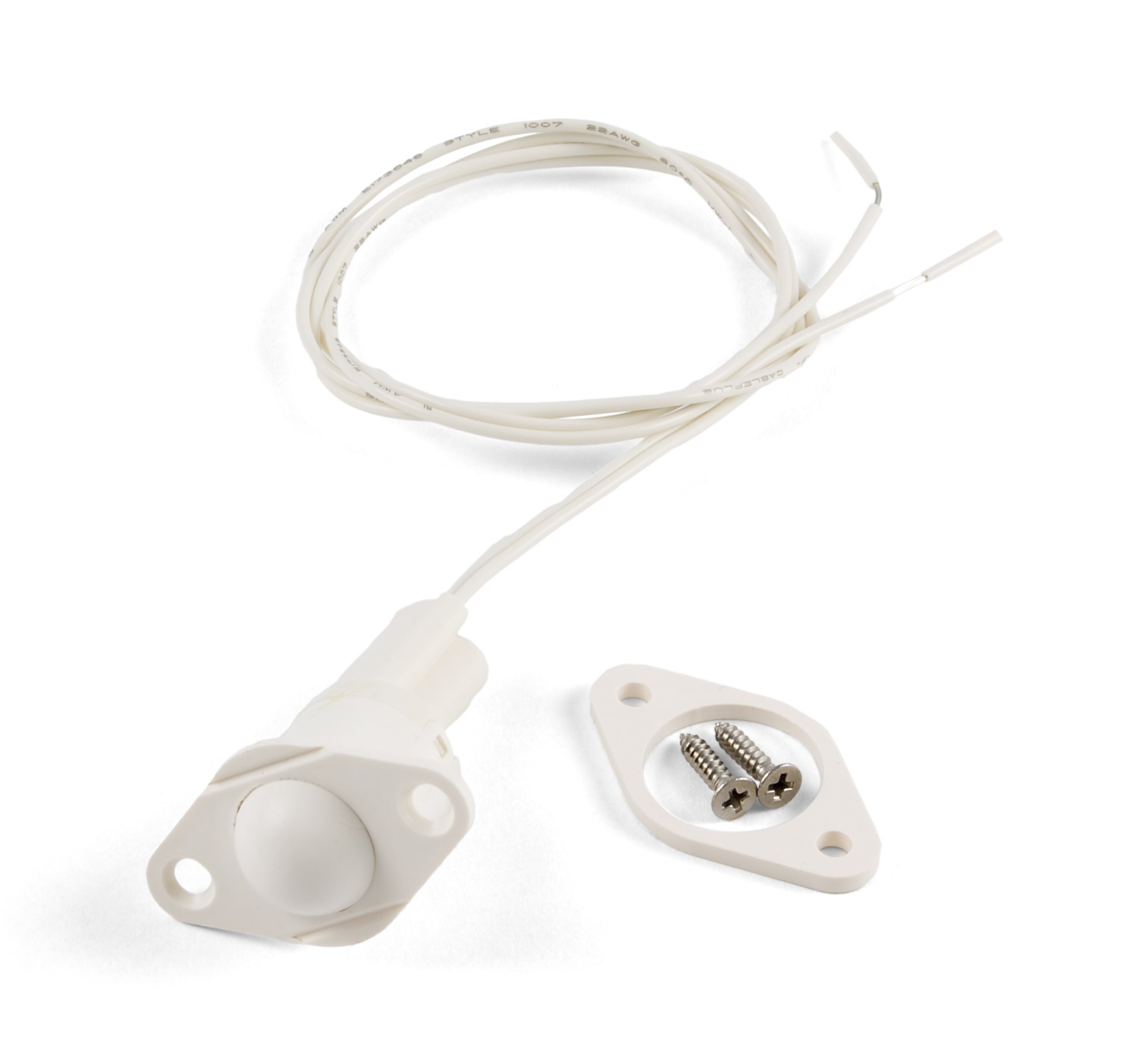

Roll Ball Switch

ID: 3561_0

A pushbutton switch with a roller-ball form factor. Perfect for door jambs or other locations where movement is expected.

$2.50

Quantity Available: 1000+

Qty Price
5 $2.40
10 $2.30
25 $2.25
50 $2.20
100 $2.15
50+...

The 3561 roll ball switch will turn the digital input "on" when the roll ball is depressed, and will turn "off" when the ball is released.

Features

  • Small switch triggers when the roller ball is pushed in
  • Connects to any Phidget that has a digital input
  • Convenient flange allows for easy mounting

Comes packaged with

  • One Spacer
  • Two screws

Interface Boards and Hubs

This switch can be read by connecting one end to a digital input and the other end to the ground pin of the same board. Here's a list of boards with digital inputs:

Product Digital Inputs
Part Number Price Number of Digital Inputs Low Voltage Max (False) Low Voltage Max (True) High Voltage Min (False) High Voltage Min (True)
1010_0
PhidgetInterfaceKit 8/8/8 Mini-Format
$80.00 8 900 mV DC 4.2 V DC
1011_0
PhidgetInterfaceKit 2/2/2
$50.00 2 800 mV DC 2.1 V DC
1012_3
PhidgetInterfaceKit 0/16/16
$95.00 16 900 mV DC 4.2 V DC
1018_2B
PhidgetInterfaceKit 8/8/8
$80.00 8 900 mV DC 4.2 V DC
1018_3B
PhidgetInterfaceKit 8/8/8
$80.00 8 1 V DC 1.8 V DC
1019_1B
PhidgetInterfaceKit 8/8/8 w/6 Port Hub
$110.00 8 900 mV DC 4.2 V DC
1065_1B
PhidgetMotorControl 1-Motor
$75.00 2 800 mV DC 2.1 V DC
1203_2B
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
$70.00 8 900 mV DC 4.2 V DC
DAQ1200_0
4x Digital Input Phidget
$12.00 4 1.5 V DC 3.5 V DC
DAQ1300_0
4x Isolated Digital Input Phidget
$20.00 4 1.3 V DC 2.5 V DC
DAQ1301_0
16x Isolated Digital Input Phidget
$50.00 16 1.3 V DC 2.5 V DC
HUB0000_1
VINT Hub Phidget
$30.00 6 (Shared) 1.3 V DC 1.8 V DC
HUB0001_0
VINT Hub Phidget
$35.00 6 (Shared) 1 V DC 2 V DC
HUB0002_0
VINT Hub Phidget
$40.00 6 (Shared) 1.3 V DC 1.8 V DC
HUB0007_0
1-Port VINT Hub Phidget
$24.00 1 (Shared) 1.3 V DC 1.7 V DC
HUB5000_0
Wireless VINT Hub
$60.00 6 (Shared) 1 V DC 1.8 V DC

Product Specifications

Sensor Properties
Sensor Type Input (Switch)
Controlled By Digital Input (5V)
Switch Type SPST
Sensor Output Switch Type Normally Open
Physical Properties
Cable Length 457.2 mm
Cable Gauge 22 AWG
Travel 6 mm
Electrical Properties
Switching Current Max 500 mA
Switching Voltage Max (AC) 100 V AC
Switching Voltage Max (DC) 100 V DC
Customs Information
Canadian HS Export Code 8536.50.00
American HTS Import Code 8536.50.90.65
Country of Origin CN (China)

Documents
