Capacitive Proximity Sensor - 15mm

ID: 3524_0

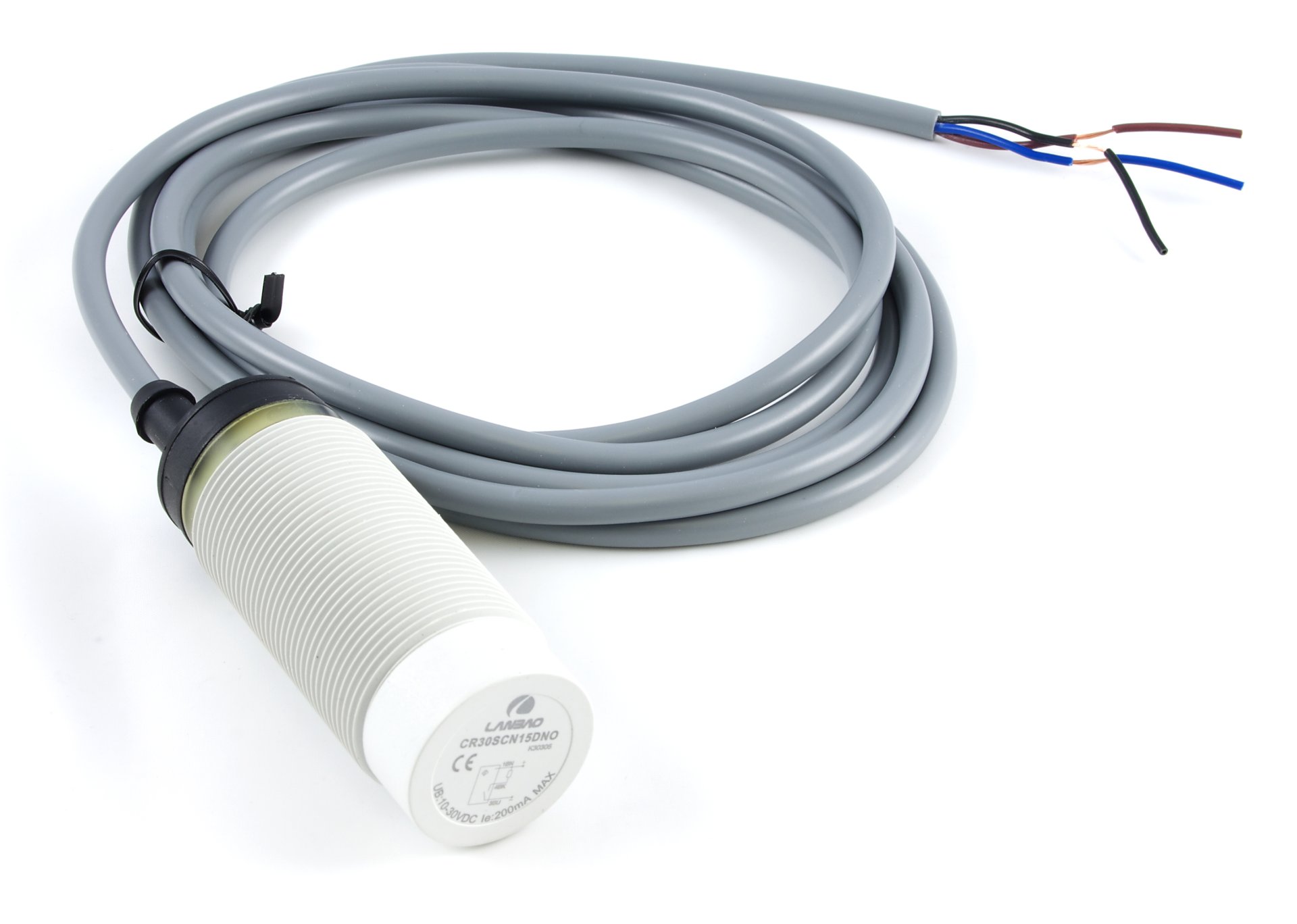

This capacitive sensor will switch when it detects metals and some other materials within 15mm.

$30.00

Quantity Available: 79

Qty Price
5 $28.80
10 $27.60

This capacitive proximity sensor is used for non-contact detection of metallic and non-metallic objects such as liquid, powder and granular materials; it can also detect materials through glass or plastic walls.

Note that the standard detecting distance is based on a standard shape approaching the sensor in a standard way. The real detecting distance will vary depending on the shape, thickness and type of material being detected.

You can adjust the operating distance by turning a screw placed on the bottom end of the sensor.

Comes packaged with

  • 2 plastic rings
  • a screwdriver
Accessories

Connection

You can use a 12V sensor adapter to connect this sensor to your InterfaceKit or Hub. See the Connection & Compatibility tab for more details.

12V Sensor Adapter

This sensor requires a 12V power supply and outputs a 0-5V signal depending on wheter the sensor is triggered. For a simple way to provide 12 volts, you can use our 12V sensor adapter. It uses the 5V supply from your InterfaceKit or Hub and steps it up to 12V while simultaneously passing the 0-5V signal from the sensor into the Phidget cable.

To connect the sensor, connect the wires as follows:

Function 35231144
+12V Brown +12V
Ground Blue GND
Data Black ANLG
Functional
Product Sensor Properties
Part Number Price Controlled By
1144_0
12V Sensor Adapter
$11.00 Voltage Input (0-5V)

Alternatively, you can use the Versatile Input Phidget, which is a VINT-controlled device that can interface a wide variety of sensors, including transducers that run on a 12V supply.

To connect the sensor, connect the wires as follows:

Function 3523DAQ1400
+12V Brown 12V/24V
Ground Blue Gnd
Data Black Digital
Functional
Product Board Properties
Part Number Price Controlled By
DAQ1400_0
Versatile Input Phidget
$20.00 VINT

Product Specifications

Sensor Properties
Controlled By Digital Input (5V)
Detecting Distance Max 15 mm
Setting Distance Max 12 mm
Sensor Type Proximity (Capacitive)
Sensor Output Switch Type Normally Open
Detection Hysteresis Min 3 %
Detection Hysteresis Max 20 %
Sensor Response Time Max 20 ms
Electrical Properties
Supply Voltage Min 10 V DC
Supply Voltage Max 30 V DC
Current Consumption Max 15 mA
Protection Circuitry Reverse Polarity, Surge, Overload and Short-Circuit
Physical Properties
Cable Length 2 m
Material PBT
Operating Indicator Yellow LED
IP Rating IP67
Length 70 mm
Diameter 25 mm
Operating Temperature Min -25 °C
Operating Temperature Max 70 °C
Operating Humidity Min 35 %RH
Operating Humidity Max 95 %RH
Customs Information
Canadian HS Export Code 8536.50.00
American HTS Import Code 8536.50.90.65
Country of Origin CN (China)

Documents

Code Samples



Example Options


Downloads

				Make your selections to display sample code.
