Replaced by the TMP4104 - K-Type Fiberglass Bead Probe Thermocouple (-40°C to +400°C)

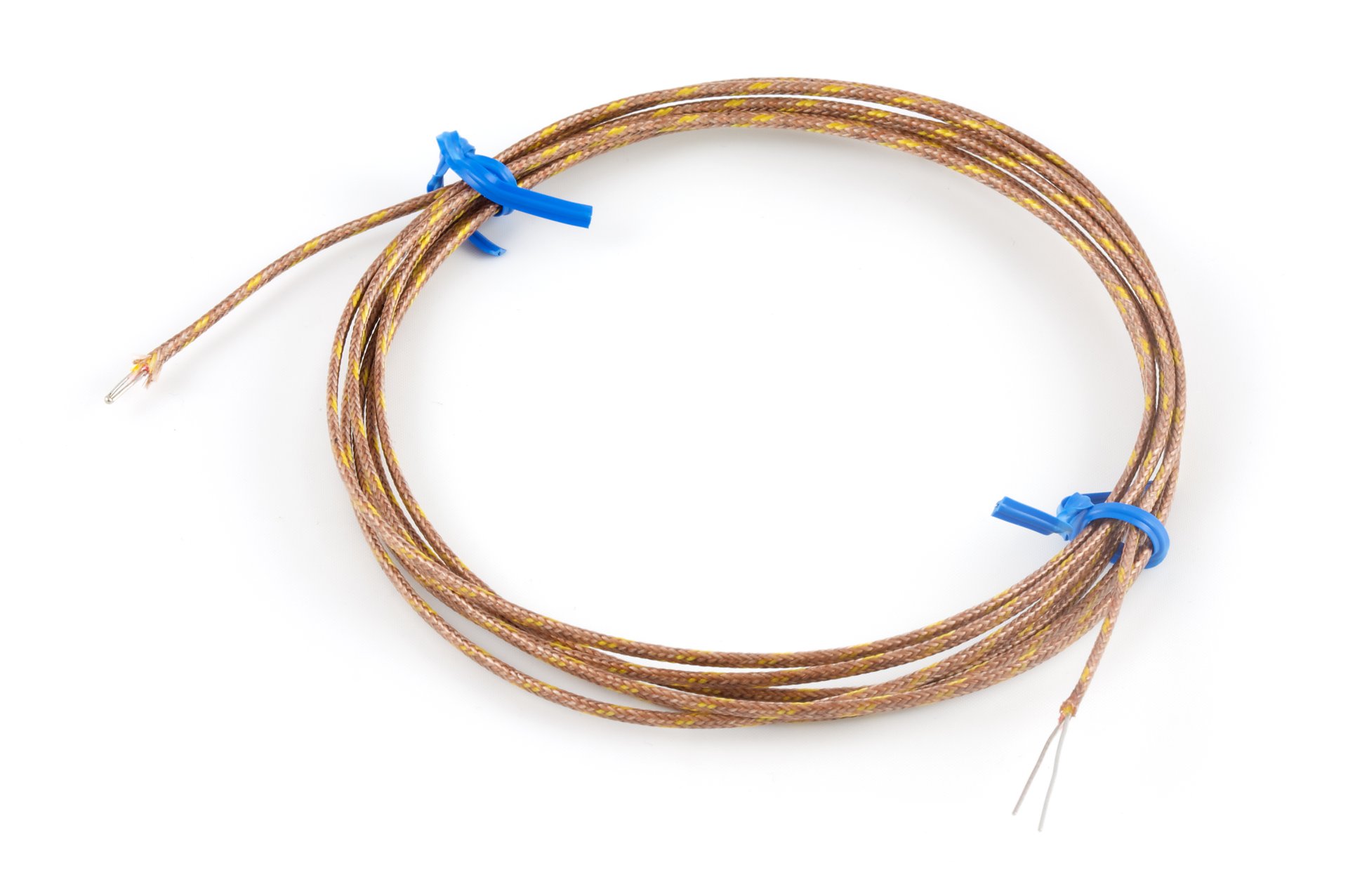

The 3109 thermocouple can measure temperatures between -50°C to +450°C with a ±0.75°C accuracy.
The thermocouple wire is insulated with fiberglass
Sensor Properties | |
---|---|
Controlled By | Thermocouple Interface |
Sensor Type | Thermocouple |
Temperature Sensor | |
Thermocouple Type | K |
Probe Type | Bead |
Ambient Temperature Min | -50 °C |
Ambient Temperature Max | 450 °C |
Ambient Temperature Error Max | ± 0.75 °C |
Physical Properties | |
Connector Type | 6mm Stripped Leads |
Cable Length | 1 m |
Cable Gauge | 24 AWG |
Insulation Material | Fiberglass |
Probe Material | chromel-alumel |
Customs Information | |
Canadian HS Export Code | 9025.19.00 |
American HTS Import Code | 9025.19.80.85 |
Country of Origin | TW (Taiwan) |
The Thermocouple is designed to plug into one of the terminal blocks on the:
Note: On the 1051, connect the red thermocouple wire to (-) terminal block and the white wire to the + terminal block. On the 1048, connect the red wire to G and the white wire to input terminal block (numbered 0 to 3).
If you need a Thermocouple with a different temperature range or thermocouple accessories have a look at:
