| 3104_0 - Interlink Electronics 0.5″ Circular 100N FSR |
Product Features
- Optimized for use in human touch control applications
- Maintenance-free
- Robust design tested to over 10 million actuations
- Convenient solder tabs for the connection
Product Description

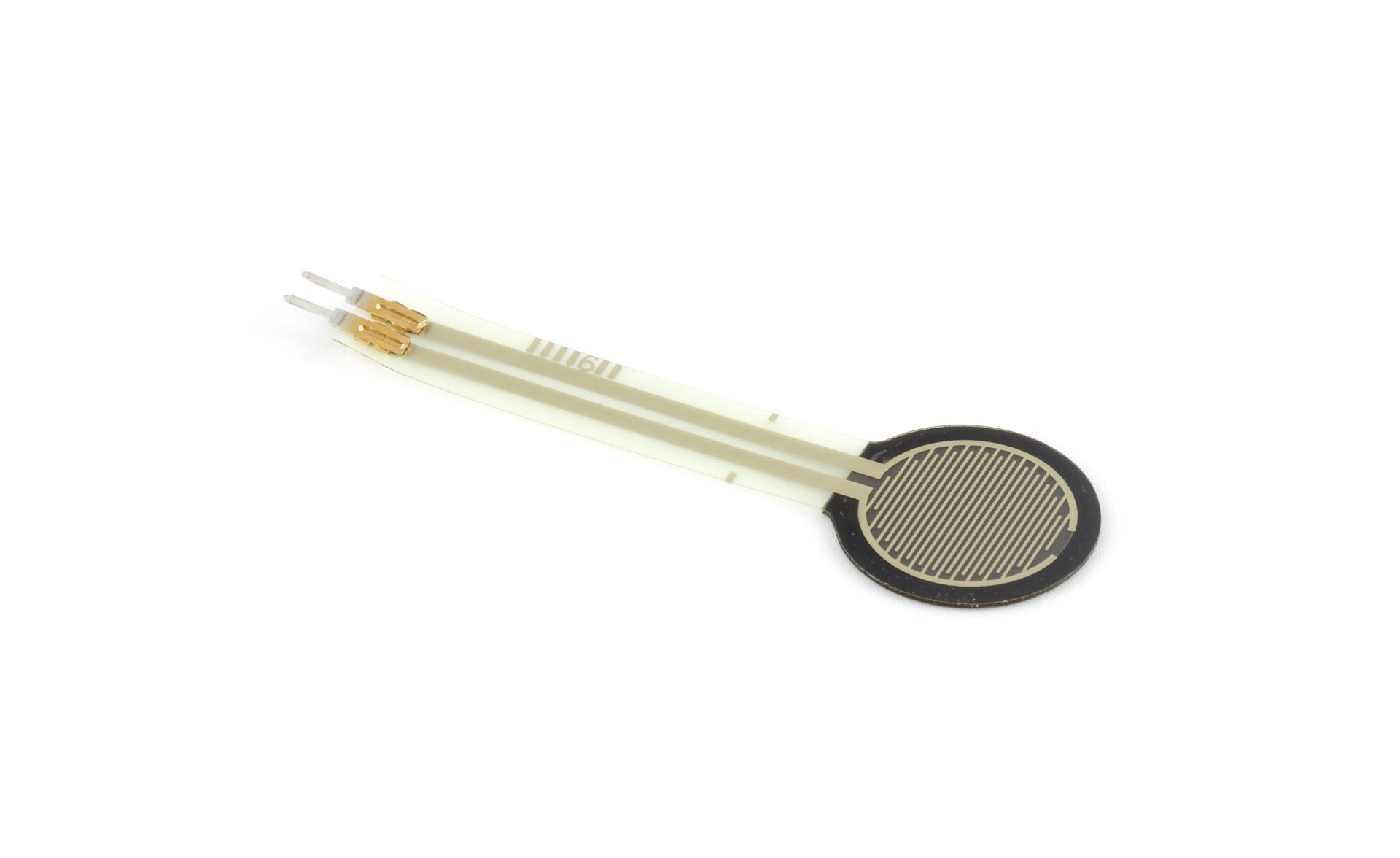

The Interlink Force Sensing Resistor uses a 0.5” (12.7mm) circular pad to sense applied force.
Force Sensing Resistors (FSRs) are very thin, robust, polymer thick film (PTF) devices that decrease in resistance when increased pressure is applied to the surface of the sensor. FSRs are not a load cell or strain gauge devices though they have many similar properties.
They are more appropriate for qualitative rather than precision measurements.
This FSR connects to:
Resources
Have a look at the User Guide. It contains Step-by-Step instructions to help you get the most out of your FSR.
Product Specifications
Sensor Properties
| Sensor Type | Force Sensitive Resistor |
| Force Min | 1 N |
| Force Max | 100 N |
| Pressure Min | 10.3 kPa |
| Pressure Max | 1 MPa |
| Repeatability Error Max | ± 2 % |
| Hysteresis Max | 10 % |
| Long-Term Drift Max | 5 % |
| Response Time Max | 3 μs |
| Temperature Sensitivity Max | 0.15 % per °C |
Physical Properties
| Sensing Area | 126.7 mm² |
| Lifespan | 10 million actuations |
| Operating Temperature Min | -30 °C |
| Operating Temperature Max | 70 °C |
