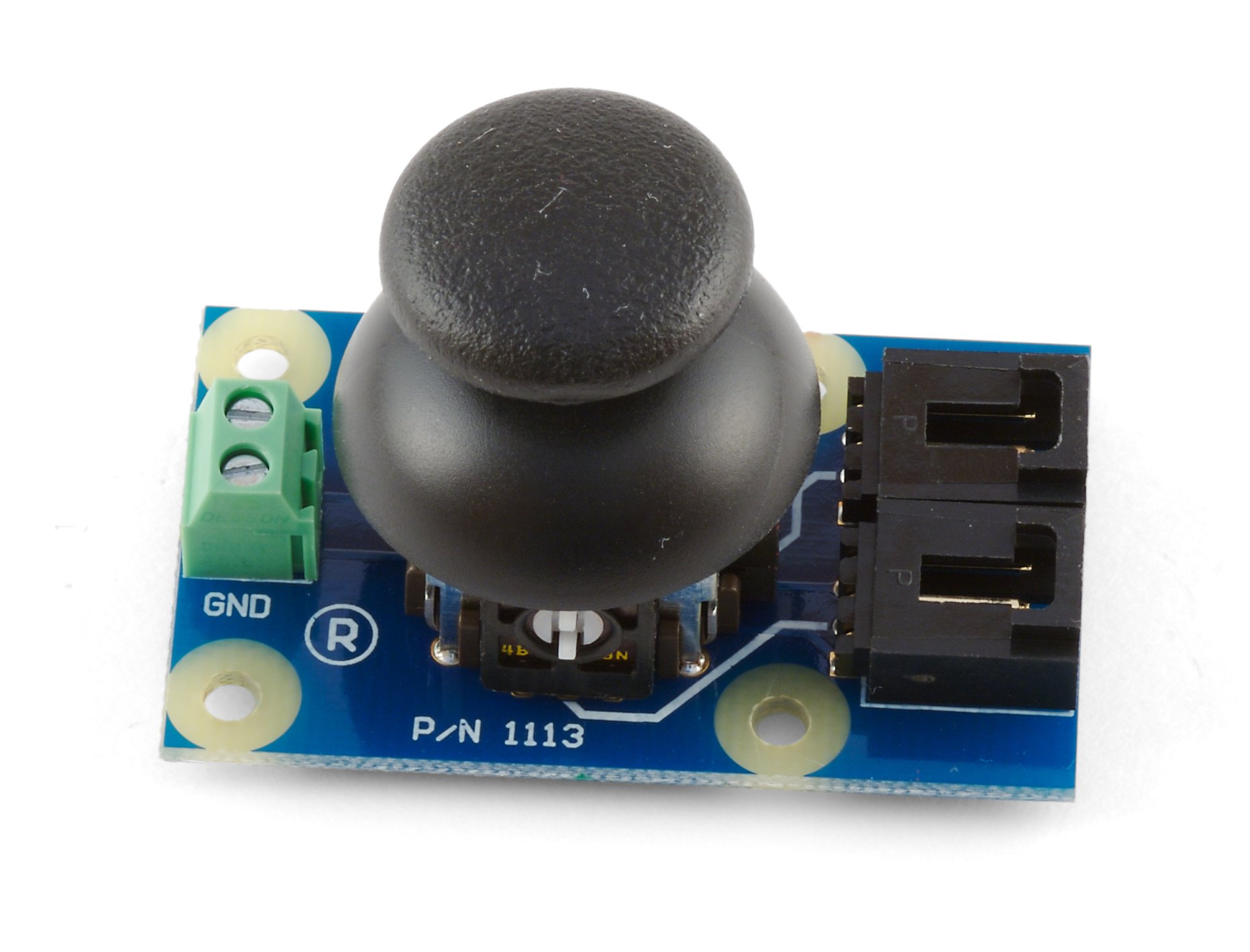

Mini Joy Stick Sensor

ID: 1113_0 NRND

This two-axis joystick has a momentary pushbutton switch and connects to two Analog Inputs or VINT Hub ports, and one Digital Input.

$5.00

Quantity Available: 651

Qty Price
5 $4.75
10 $4.50
25 $4.00
50 $3.50
100 $3.25
50+...

For new systems and projects, we recommend using the following VINT products instead of this one.

This miniature joystick has two axes and a pushbutton. Each axis, up/down and left/right, has a potentiometer with a center value of approximately half the supply voltage. When you move the Joystick from its center position the value will increase or decrease depending on the direction. Using a simple calculation in your program you can convert these X/Y values to an angle and magnitude.

Pressing down on the Joystick pin will make a momentary contact that can be connected to a Digital Input through the terminal blocks.

Features

  • Read the inputs of one game-style thumbstick
  • Two 0-5V outputs for the X and Y axis of the stick
  • One digital output for the pushbutton when the stick is pressed in
  • Connects to a Phidgets VINT port or voltage input

Comes packaged with

Functional

Interface Boards and Hubs

The joystick can be read by any Phidget with an Analog Input or VINT Hub port. It will connect to either one using the included Phidget cable. The pushbutton under the stick can be read by any Phidget with a Digital Input or a VINT Hub port. VINT Hub ports can behave just like Analog Inputs, but have the added flexibility of being able to be used as digital inputs, digital outputs, or ports to communicate with VINT devices. For more information about VINT, see the VINT Overview page.

Product Digital Inputs Voltage Inputs
Part Number Price Number of Digital Inputs Number of Voltage Inputs
1010_0
PhidgetInterfaceKit 8/8/8 Mini-Format
$80.00 8 8
1011_0
PhidgetInterfaceKit 2/2/2
$50.00 2 2
1018_2B
PhidgetInterfaceKit 8/8/8
$80.00 8 8
1018_3B
PhidgetInterfaceKit 8/8/8
$80.00 8 8
1019_1B
PhidgetInterfaceKit 8/8/8 w/6 Port Hub
$110.00 8 8
1065_1B
PhidgetMotorControl 1-Motor
$75.00 2 2
1203_2B
PhidgetTextLCD 20X2 : White : Integrated PhidgetInterfaceKit 8/8/8
$70.00 8 8
HUB0000_1
VINT Hub Phidget
$30.00 6 (Shared) 6 (Shared)
HUB0001_0
VINT Hub Phidget
$35.00 6 (Shared) 6 (Shared)
HUB0002_0
VINT Hub Phidget
$40.00 6 (Shared) 6 (Shared)
HUB0007_0
1-Port VINT Hub Phidget
$24.00 1 (Shared) 1 (Shared)
HUB5000_0
Wireless VINT Hub
$60.00 6 (Shared) 6 (Shared)

Phidget Cables

This sensor comes with its own Phidget cable to connect it to an InterfaceKit or Hub, but if you need extras we have a full list down below. You can solder multiple cables together in order to make even longer Phidget cables, but you should be aware of the effects of having long wires in your system.

Product Physical Properties
Part Number Price Cable Length
3002_0
Phidget Cable 60cm
$2.00 600 mm
3003_0
Phidget Cable 10cm
$1.50 100 mm
3004_0
Phidget Cable 350cm
$3.00 3.5 m
3038_0
Phidget Cable 120cm
$2.25 1.2 m
3039_0
Phidget Cable 180cm
$2.75 1.8 m
CBL4104_0
Phidget Cable 30cm
$1.75 300 mm
CBL4105_0
Phidget Cable 90cm
$2.00 900 mm
CBL4106_0
Phidget Cable 150cm
$2.50 1.5 m
KIT4030_0
Phidget Cable Kit
$10.00 80 mm


Getting Started

Welcome to the 1113 user guide! In order to get started, make sure you have the following hardware on hand:


Next, you will need to connect the pieces:

1113 0 Connecting The Hardware.jpg
  1. Connect the 1113 to the HUB0000 with the Phidget cables. One port is needed for each axis of the stick.
  2. Connect the 1113 to the HUB0000 digital input.
  3. Connect the HUB0000 to your computer with the USB cable.


Now that you have everything together, let's start using the 1113!

Using the 1113

Phidget Control Panel

In order to demonstrate the functionality of the 1113, we will connect it to the HUB0000, and then run an example using the Phidget Control Panel on a Windows machine.


The Phidget Control Panel is available for use on both macOS and Windows machines. If you would like to follow along, first take a look at the getting started guide for your operating system:


Linux users can follow the getting started with Linux guide and continue reading here for more information about the 1113.

First Look

After plugging in the 1113 into the HUB0000, and the HUB0000 into your computer, open the Phidget Control Panel. You will see something like this:

HUB0000 Panel.jpg


The Phidget Control Panel will list all connected Phidgets and associated objects, as well as the following information:

  • Serial number: allows you to differentiate between similar Phidgets.
  • Channel: allows you to differentiate between similar objects on a Phidget.
  • Version number: corresponds to the firmware version your Phidget is running. If your Phidget is listed in red, your firmware is out of date. Update the firmware by double-clicking the entry.


The Phidget Control Panel can also be used to test your device. Double-clicking on an object will open an example.

Voltage Ratio Input

Double-click on a Voltage Ratio Input object in order to run the example:

1018 Sensors VoltageRatioInput.png


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • Modify the change trigger and/or data interval value by dragging the sliders. For more information on these settings, see the data interval/change trigger page.
  • Select the 1113 from the Sensor Type drop-down menu. The Sensor Value will now return a value between -1 and 1. When you move the joystick from its center position, the value will increase or decrease depending on the direction.


Digital Input

Double-click on the Digital Input object in order to run the example:

1018 DigitalInputBTN Example.jpg


General information about the selected object will be displayed at the top of the window. You can also experiment with the following functionality:

  • This is a button type device, therefore, it will be true when the button is pressed, and false in the default state.


Technical Details

General

The 1113 has two axes and a push button. Each axis, up/down and left/right, has a potentiometer with a center value of approximately 0.5 V/V (or 0 when using the Sensor Value). When you move the joystick from its center position the value will increase or decrease depending on the direction. Pressing down on the joystick will make a momentary contact that can be connected to a digital input on any compatible product.

Phidget Cable


The Phidget Cable is a 3-pin, 0.100 inch pitch locking connector. Pictured here is a plug with the connections labelled. The connectors are commonly available - refer to the Analog Input Primer for manufacturer part numbers.

What to do Next

  • Programming Languages - Find your preferred programming language here and learn how to write your own code with Phidgets!
  • Phidget Programming Basics - Once you have set up Phidgets to work with your programming environment, we recommend you read our page on to learn the fundamentals of programming with Phidgets.


Product Specifications

Sensor Properties
Sensor Type Input (Joystick)
Controlled By VoltageRatio Input, Digital Input (5V)
Sensor Output Type Ratiometric
Electrical Properties
Current Consumption Max 1 mA
Output Impedance 10 kΩ
Supply Voltage Min 3 V DC
Supply Voltage Max 5.3 V DC
Physical Properties
Operating Temperature Min -10 °C
Operating Temperature Max 70 °C
Customs Information
Canadian HS Export Code 8473.30.00
American HTS Import Code 8473.30.51.00
Country of Origin CN (China)

Documents

Product History

Date Board Revision Device Version Comment
September 2003 0 N/A Product Release
August 20040N/AAnalog input connector changed from stereo jack to 3-pin Molex

This device doesn't have an API of its own. It is controlled by opening a VoltageRatioInput channel on the Phidget that it's connected to. For a list of compatible Phidgets with VoltageRatio Inputs, see the Connection & Compatibility tab.

You can find details for the VoltageRatioInput API on the API tab for the Phidget that this sensor connects to.

Code Samples



Example Options


Downloads

				Make your selections to display sample code.


Have a look at our other thumbsticks:

Product Sensor Properties
Part Number Price Controlled By
1113_0
Mini Joy Stick Sensor
$5.00 VoltageRatio Input, Digital Input (5V)
HIN1100_0
Thumbstick Phidget
$20.00 VINT
