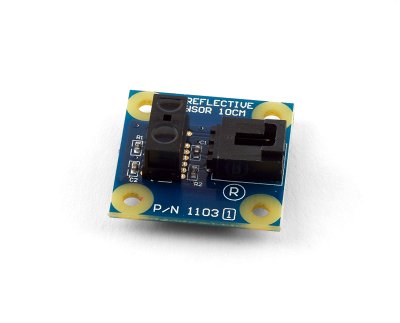

| 1103_1 - IR Reflective Sensor 10cm |
Product Features
- Can detect the presence of an object at a distance of 0 to 10cm.
- Works just as well in both dim and well lit areas
- Does not depend on the reflective property of the object
- Connects to any device with an Analog Input.
Product Description
This sensor can detect the presence of objects at a distance of 0 to 10cm regardless of the object reflective properties. When an object enters the range of detection, SensorValue becomes zero, and when it leaves, it returns to 1000. The 1103 works just as well in both dim and well lit environments.
The sensor cannot detect the presence of the object if it is emitting large amounts of light, such as a light bulb.
Product Specifications
Sensor Properties
| Sensor Type | Distance (Infrared) |
| Sensor Output Type | Ratiometric |
| Measurement Distance Min | 0 m |
| Measurement Distance Max | 100 mm |
Electrical Properties
| Supply Voltage Min | 4.8 V DC |
| Supply Voltage Max | 5.3 V DC |
| Current Consumption Max | 9 mA |
| Output Impedance | 1 kΩ |
Physical Properties
| Weight | 4.3 g |
| Operating Temperature Min | -10 °C |
| Operating Temperature Max | 60 °C |
