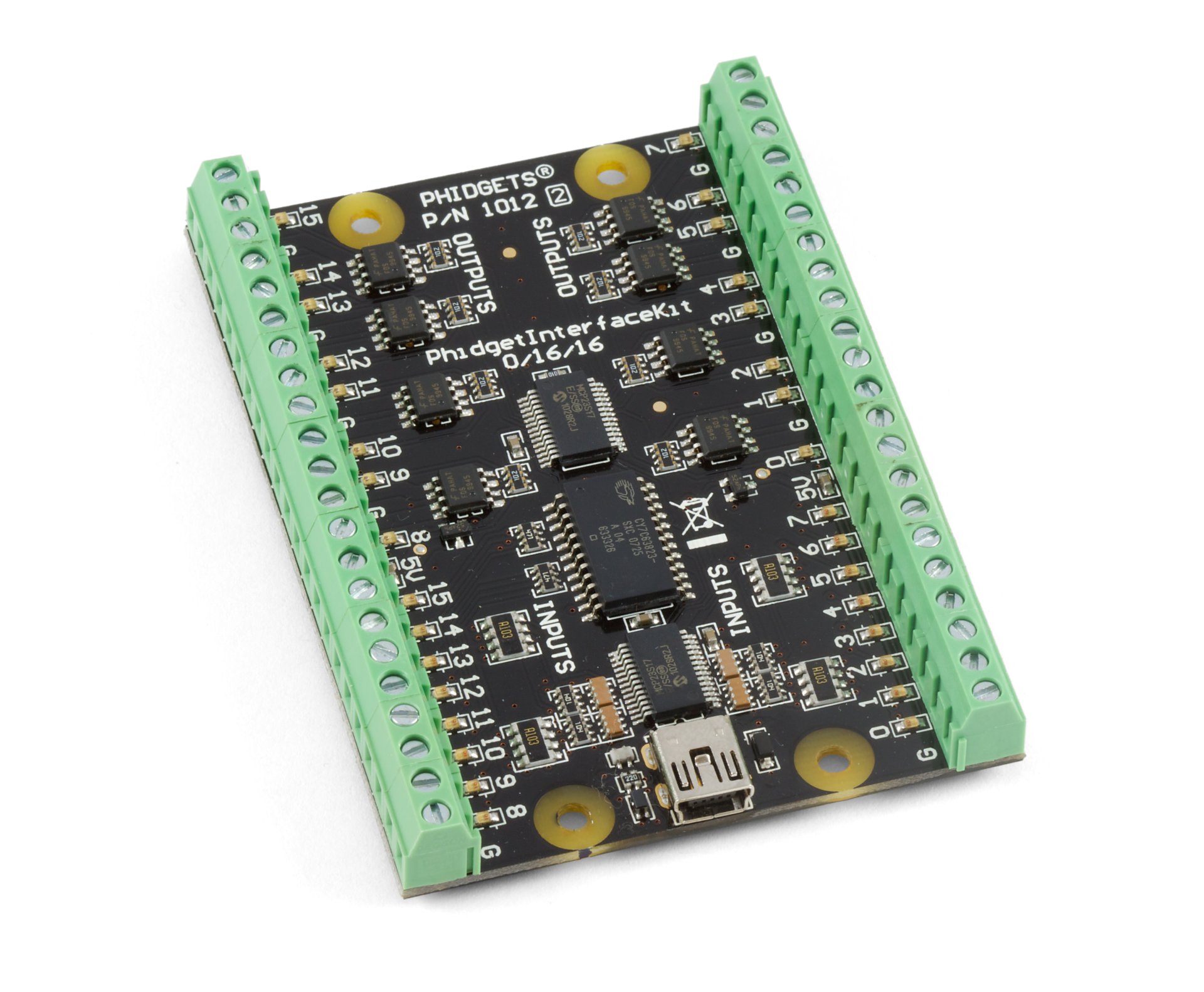

| 1012_2 - PhidgetInterfaceKit 0/16/16 |
Product Features
- 16 Digital Inputs - with hardware noise filtering - sensing up to 30VDC
- 16 Digital Outputs controlling up to 30VDC
- Red LED indicators on digital outputs and Green LED indicators on digital inputs
- Two terminal blocks with +5V USB power
- Connects directly to a computer’s USB port
The Digital Inputs are activated by an external voltage source, triggering on a wide voltage range - 4 to 30VDC. They provide built-in filtering, to eliminate false triggering from electrical noise. They can be used to convey the state of on/off devices, such as push buttons, limit switches, relays.
The Digital Outputs can be used to directly control substantial devices, switching up to 30VDC at up to 2 Amps. The Output acts as a switch to ground, and is protected from transient voltages typical when switching inductive devices - relays, solenoids, motors. The Outputs can be used to directly control devices requiring substantial power such as incandescent lights, high power LEDs, relays, solenoids, motors.
Board
| USB Voltage Min | 4.6 V DC |
| USB Voltage Max | 5.5 V DC |
| Current Consumption Min | 14 mA |
| Current Consumption Max | 500 mA |
| Available External Current | 394 mA |
| Recommended Wire Size | 16 - 26 AWG |
| USB Speed | Full Speed |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
Digital Inputs
| Number of Digital Inputs | 16 |
| Digital Input Impedance | 10 kΩ |
| Low Voltage Max (False) | 900 mV DC |
| High Voltage Min (True) | 4.2 V DC |
| Digital Input Voltage Max | ± 30 V DC |
| Digital Input Update Rate | 125 samples/s |
| Trigger Length Min | 3 ms |
Digital Outputs
| Number of Open Collector Digital Outputs | 16 |
| Series Resistance | 200 mΩ |
| Open Collector Voltage Max | 30 V DC |
| Digital Output Current Sinking Max | (per channel) 2 A |
- User Guide
- Digital Input Primer
- Open Collector Digital Output Primer
- Mechanical Drawings
- Download 3D Step File
- Programming Resources
- A 3018 - Mini-USB cable 1830cm
- A Hardware mounting kit (4 nuts and bolts, 4 plastic spacers)

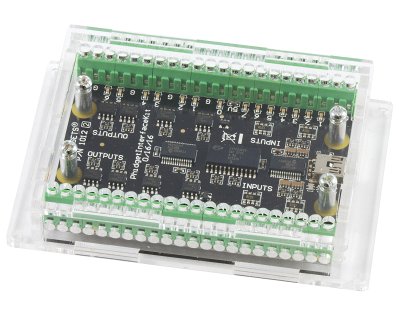

You can protect your board by purchasing the 3801 - Acrylic Enclosure for the 1012_2 .
- 1012_0 - PhidgetInterfaceKit 0/16/16 Board Revision 0
- 1012_1 - PhidgetInterfaceKit 0/16/16 Board Revision 1
